Introduction

The Cloudron is the best platform self-hosting web applications on your server. You can easily install apps on it, add users, manage access restriction and keep your server and apps updated with no effort.

You might wonder that there are so many 1-click app solutions out there and what is so special about Cloudron? As the name implies, 1-click installers simply install code into a server and leave it at that. There's so much more to do:

1. Configure a domain to point to your server
2. Setup SSL certificates and renew them periodically
3. Ensure apps are backed up correctly
4. Ensure apps are uptodate and secure
5. Have a mechanism to quickly restore apps from a backup
6. Manage users across all your apps
7. Get alerts and notifications about the status of apps

... and so on ...

We made the Cloudron to dramatically lower the bar for people to run apps on servers. Just provide a domain name, install apps and add users. All the server management tasks listed above is completely automated.

If you want to learn more about the secret sauce that makes the Cloudron, please read our architecture overview.

Use cases

Here are some of the apps you can run on a Cloudron:

• RSS Reader
• Chat, IRC, Jabber servers
• Public forum
• Blog
• File syncing and sharing
• Code hosting
• Email

Our list of apps is growing everyday, so be sure to follow us on twitter.

Activation

When you first create the Cloudron, the setup wizard will ask you to setup an administrator account. Don't worry, a Cloudron adminstrator doesn't need to know anything about maintaining a server! It's the whole reason why we made the Cloudron. Being a Cloudron administrator is more analagous to being the owner of a smartphone. You can always add more administrators to the Cloudron from the Users menu item.

The Cloudron administration page is located at the my subdomain. You might want to bookmark this link!

Apps

Installation

You can install apps on the Cloudron by choosing the App Store menu item. Use the 'Search' bar to search for apps.

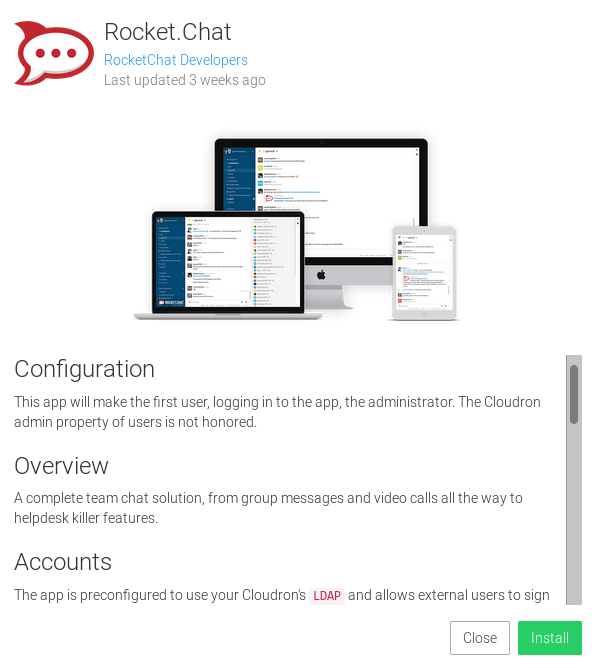

Clicking on app gives you information about the app.

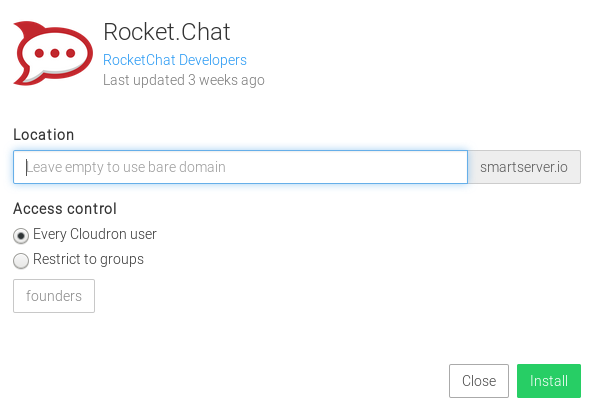

Clicking the Install button will show an install dialog like below:

The Location field is the subdomain in which your app will be installed. For example, if you use the mail location for your web mail client, then it will be accessible at mail.<domain>.

Tip: You can access the apps directly on your browser using mail.<domain>. You don't have to visit the Cloudron administration panel.

Access control specifies who can access this app.

• Every Cloudron user - Any user in your Cloudron can access the app. Initially, you are the only user in your Cloudron. Unless you explicitly invite others, nobody else can access these apps. Note that the term 'access' depends on the app. For a blog, this means that nobody can post new blog posts (but anybody can view them). For a chat server, this might mean that nobody can access your chat server.

• Restrict to groups - Only users in the groups can access the app.

Updates

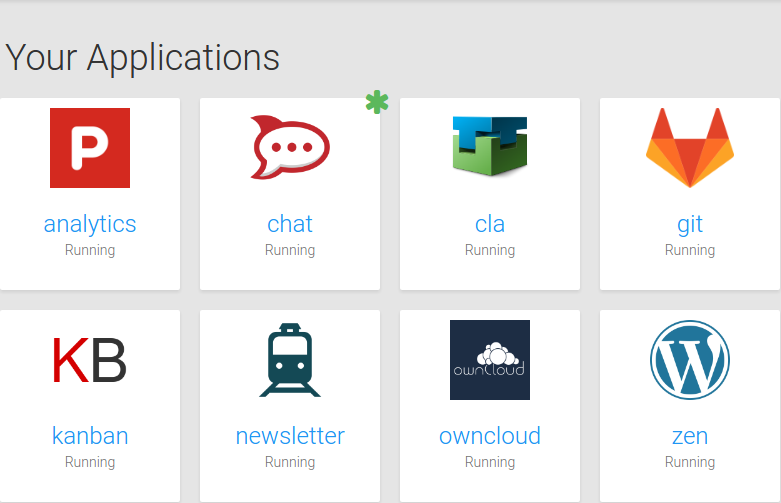

All your apps automatically update as and when the application author releases an update. The Cloudron will attempt to update around midnight of your timezone.

Some app updates are not automatic. This can happen if a new version of the app has removed some features that you were relying on. In such a case, the update has to be manually approved. This is simply a matter of clicking the Update button (the green star) after you read about the changes.

Backups

If you self-host, please refer to the self-hosting documentation for backups.

All apps are automatically backed up every day. Backups are stored encrypted in Amazon S3. You don't have to do anything about it. The Cloudron CLI tool can be used to download application backups.

Configuration

Apps can be reconfigured using the Configure button.

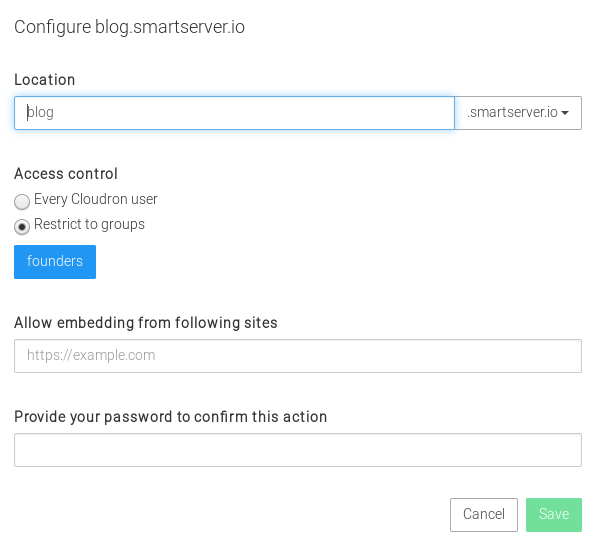

Click on the wrench button will bring up the configure dialog.

You can do the following:

• Change the location to move the app to another subdomain. Say, you want to move your blog from blog to about.
• Change who can access the app.

Changing an app's configuration has a small downtime (usually around a minute).

Restore

Apps can be restored to a previous backup by clicking on the Restore button.

Note that restoring previous data might also restore the previous version of the software. For example, you might be currently using Version 5 of the app. If you restore to a backup that was made with Version 3 of the app, then the restore operation will install Version 3 of the app. This is because the latest version may not be able to handle old data.

Uninstall

You can uninstall an app by clicking the Uninstall button.

Note that all data associated with the app will be immediately removed from the Cloudron. App data might still persist in your old backups and the CLI tool provides a way to restore from those old backups should it be required.

Embedding Apps

It is possible to embed Cloudron apps into other websites. By default, this is disabled to prevent Clickjacking.

You can set a website that is allowed to embed your Cloudron app using the app's Configure dialog. Click on 'Show Advanced Settings...' and enter the embedder website name.

Custom domain

When you create a Cloudron from cloudron.io, we provide a subdomain under cloudron.me like girish.cloudron.me. Apps are available under that subdomain using a hyphenated name like blog-girish.cloudron.me.

Domain names are a thing of pride and the Cloudron makes it easy to make your apps accessible from memorable locations like blog.girish.in.

Single app on a custom domain

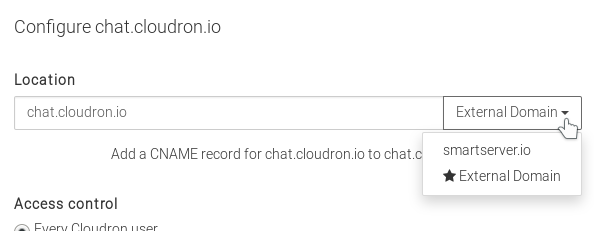

This approach is applicable if you desire that only a single app be accessing from a custom domain. For this, open the app's configure dialog and choose External Domain in the location dropdown.

This dialog will suggest you to add a CNAME record. Once you setup a CNAME record with your DNS provider, the app will be accessible from that external domain.

Entire Cloudron on a custom domain

This approach is applicable if you want all your apps to be accessible from subdomains of your custom domain. For example, blog.girish.in, notes.girish.in, owncloud.girish.in, mail.girish.in and so on. This approach is also the only way that the Cloudron supports for sending and receiving emails from your domain.

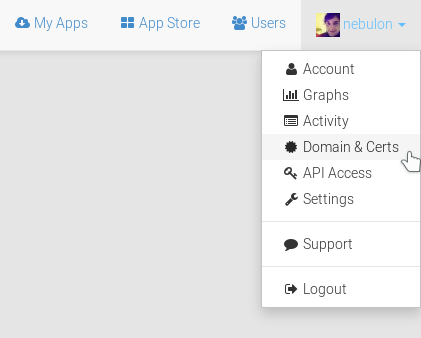

For this, go to the 'Domains & Certs' menu item.

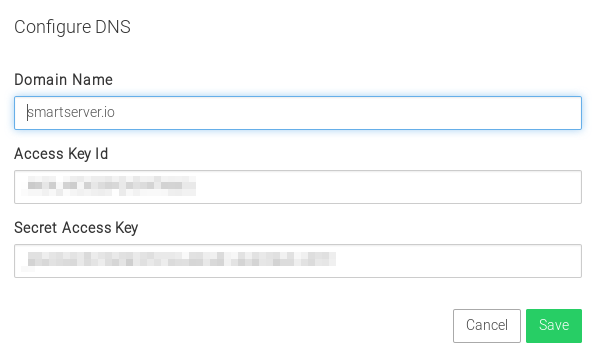

Change the domain name to your custom domain. Currently, we require that your domain be hosted on AWS Route53.

Moving to a custom domain will retain all your apps and data and will take around 15 minutes. If you require assistance with another provider, just let us know.

User management

Users

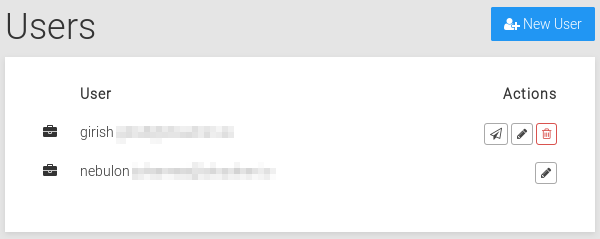

You can invite new users (friends, family, colleagues) with their email address from the Users menu. They will receive an invite to sign up with your Cloudron. They can now access the apps that you have given them access to.

To remove a user, simply remove them from the list. Note that the removed user cannot access any app anymore.

Administrators

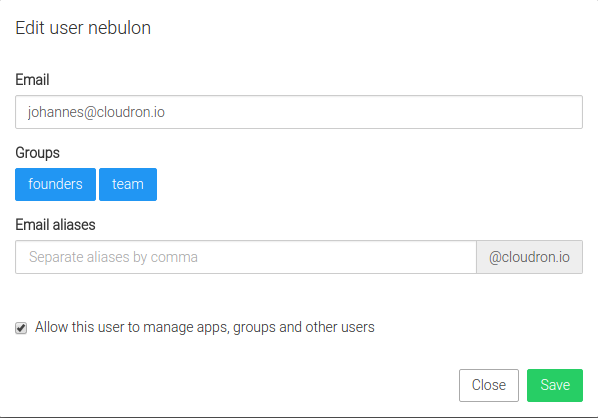

A Cloudron administrator is a special right given to an existing Cloudron user allowing them to manage apps and users. To make an existing user an administator, click the edit (pencil) button corresponding to the user and check the Allow this user to manage apps, groups and other users checkbox.

Groups

Groups provide a convenient way to group users. It's purpose is two-fold:

• You can assign one or more groups to apps to restrict who can access for an app.
• Each group is a mailing list (forwarding address) constituting of it's members.

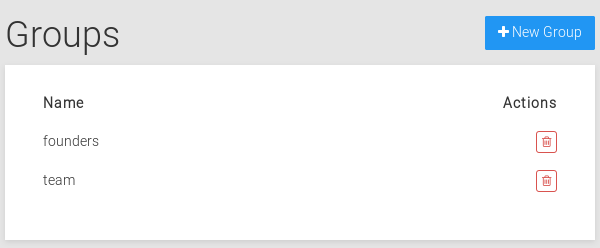

You can create a group by using the Groups menu item.

To set the access restriction use the app's configure dialog.

You can now send mails to groupname@<domain> to address all the group members.

Login

Cloudron admin

The Cloudron admin page is always located at the my subdomain of your Cloudron domain. For custom domains, this will be like my.girish.in. For domains from cloudron.io, this will be like my-girish.cloudron.me.

Apps (single sign-on)

An important feature of the Cloudron is Single Sign-On. You use the same username & password for logging in to all your apps. No more having to manage separate set of credentials for each service!

Single user apps

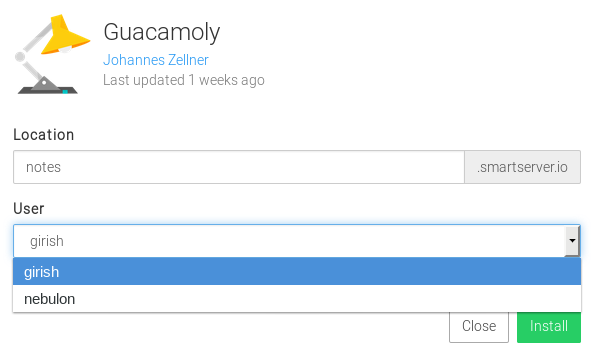

Some apps only work with a single user. For example, a notes app might allow only a single user to login and add notes. For such apps, you will be prompted during installation to select the single user who can access the app.

If you want multiple users to use the app independently, simply install the app multiple times to different locations.

Email

The Cloudron has a built-in email server. The primary email address is the same as the username. Emails can be sent and received from <username>@<domain>. The Cloudron does not allow masquerading - one user cannot send email pretending to be another user.

Enabling Email

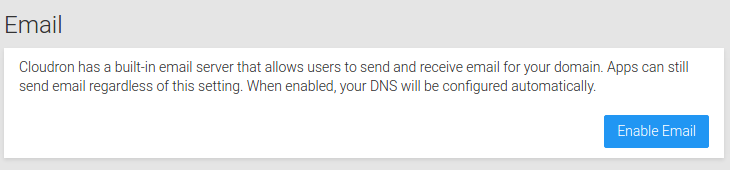

By default, Cloudron's email server only allows apps to send email. To enable users to send and receive email, turn on the option under Settings. Turning on this option also allows apps to receive email.

Once email is enabled, the Cloudron will keep the the MX DNS record updated.

Receiving email using IMAP

Use the following settings to receive email.

• Server Name - Use the my subdomain of your Cloudron
• Port - 993
• Connection Security - TLS
• Username/password - Same as your Cloudron credentials

Sending email using SMTP

Use the following settings to send email.

• Server Name - Use the my subdomain of your Cloudron
• Port - 587
• Connection Security - STARTTLS
• Username/password - Same as your Cloudron credentials

Email filters using Sieve

Use the following settings to setup email filtering users via Manage Sieve.

• Server Name - Use the my subdomain of your Cloudron
• Port - 4190
• Connection Security - TLS
• Username/password - Same as your Cloudron credentials

The Rainloop and Roundcube apps are already pre-configured to use the above settings.

Aliases

You can configure one or more aliases alongside the primary email address of each user. You can set aliases by editing the user's settings, available behind the edit button in the user listing. Note that aliases cannot conflict with existing user names.

Currently, it is not possible to login using the alias for SMTP/IMAP/Sieve services. Instead, add the alias as an identity in your mail client but login using the Cloudron credentials.

Subaddresses

Emails addressed to <username>+tag@<domain> will be delivered to the username mailbox. You can use this feature to give out emails of the form username+kayak@<domain>, username+aws@<domain> and so on and have them all delivered to your mailbox.

Forwarding addresses

Each group on the Cloudron is also a forwarding address. Mails can be addressed to group@<domain> and the mail will be sent to each user who is part of the group.

Marking Spam

The spam detection agent on the Cloudron requires training to identify spam. To do this, simply move your junk mails to a pre-created folder named Spam. Most mail clients have a Junk or Spam button which does this automatically.

Graphs

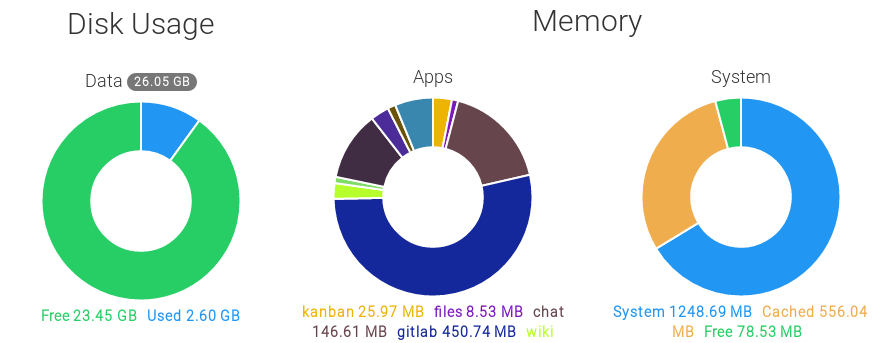

The Graphs view shows an overview of the disk and memory usage on your Cloudron.

The Disk Usage graph shows you how much disk space you have left. Note that the Cloudron will send the Cloudron admins an email notification when the disk is ~90% full.

The Apps Memory graph shows the memory consumed by each installed app. You can click on each segment on the graph to see the memory consumption over time in the chart below it.

The System Memory graph shows the overall memory consumption on the entire Cloudron. If you see the Free memory < 50MB frequently, you should consider upgrading to a Cloudron with more memory.

Activity log

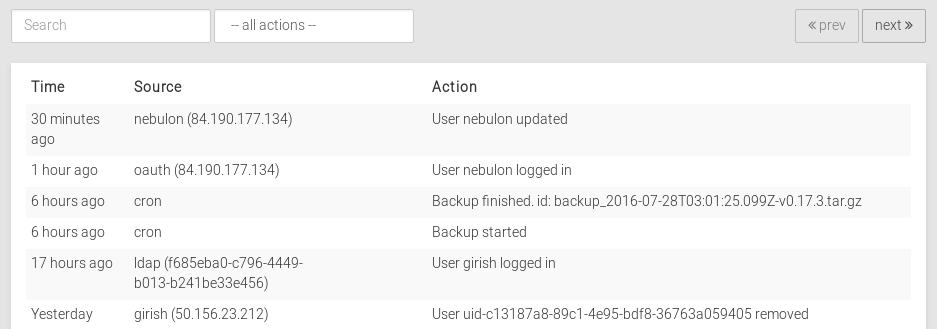

The Activity view shows the activity on your Cloudron. It includes information about who is using the apps on your Cloudron and also tracks configuration changes.

Security

Security is a core feature of the Cloudron and we continue to push out updates to tighten the Cloudron's security policy. Our goal is that Cloudron users should be able to rely on Cloudron being secure out of the box without having to do manual configuration.

This section is intended for technical users and lists various security measures in place to protect the Cloudron.

HTTP Security

• Cloudron admin has a CSP policy that prevents XSS attacks.
• Cloudron set various security related HTTP headers like X-XSS-Protection, X-Download-Options, X-Content-Type-Options, X-Permitted-Cross-Domain-Policies, X-Frame-Options across all apps.

SSL

• Cloudron enforces HTTPS across all apps. HTTP requests are automatically redirected to HTTPS.
• The Cloudron automatically installs and renews certificates for your apps as needed. Should installation of certificate fail for reasons beyond it's control, Cloudron admins will get a notification about it.
• Cloudron sets the Strict-Transport-Security header to protect apps against downgrade attacks and cookie hijacking
• Cloudron has A+ rating for SSL from SSL Labs.

App isolation

• Apps are isolated completely from one another. One app cannot tamper with another apps' database or local files. We achieve this using Linux Containers.
• Apps run with a read-only rootfs preventing attacks where the application code can be tampered with.
• Apps can only connect to addons like databases, LDAP, email relay using authentication.

Email

• Cloudron checks against the Zen Spamhaus DNSBL before accepting mail.
• Email can only be accessed with IMAP over TLS (IMAPS).
• Email can only be relayed (including same-domain emails) by authenticated users using SMTP/STARTTLS.
• Cloudron ensures that MAIL FROM is the same as the authenticated user. Users cannot spoof each other.
• All outbound mails from Cloudron are DKIM signed.
• Cloudron automatically sets up SPF, DMARC policies in the DNS for best email delivery.
• All incoming mail is scanned via Spamassasin.

Firewall

• Cloudron blocks all incoming ports except 22 (ssh), 80 (http), 443 (https)
• When email is enabled, Cloudron allows 25 (SMTP), 587 (MSA), 993 (IMAPS) and 4190 (WebSieve)

Rate limits

The goal of rate limits is to prevent password brute force attacks.

• Cloudron password verification routes are limited to 1 request per second per IP.
• HTTP and HTTPS requests are rate limited to 250 requests in 5 seconds per IP.
• SSH access is rate-limited to max of 10 connections in 10 seconds per IP.
• With email enabled, Port 25, 587, 993, 4190 are rate limited to 10 connections in 10 seconds per IP.
• Connections to internal addons like PostgreSQL, MongoDB, Redis are rate limited to 250 connections in 10 seconds per IP.
• Apps can only authenticate (LDAP, IMAP, Sieve) at the rate of 10 connections in 10 seconds per IP.

API Access

All the operations listed in this manual like installing app, configuring users and groups, are completely programmable with a REST API.

OAuth Provider

Cloudron is an OAuth 2.0 provider. To integrate Cloudron login into an external application, create an OAuth application under API Access.

You can use the following OAuth URLs to add Cloudron in the external app:

authorizationURL: https://my.<domain>/api/v1/oauth/dialog/authorize

tokenURL:         https://my.<domain>/api/v1/oauth/token

Moving to a larger Cloudron

When using a Cloudron from cloudron.io, it is easy to migrate your apps and data to a bigger server. In the Settings page, you can change the plan.

Command line tool

If you are a software developer or a sysadmin, the Cloudron comes with a CLI tool that can be used to develop custom apps for the Cloudron. Read more about it here.
